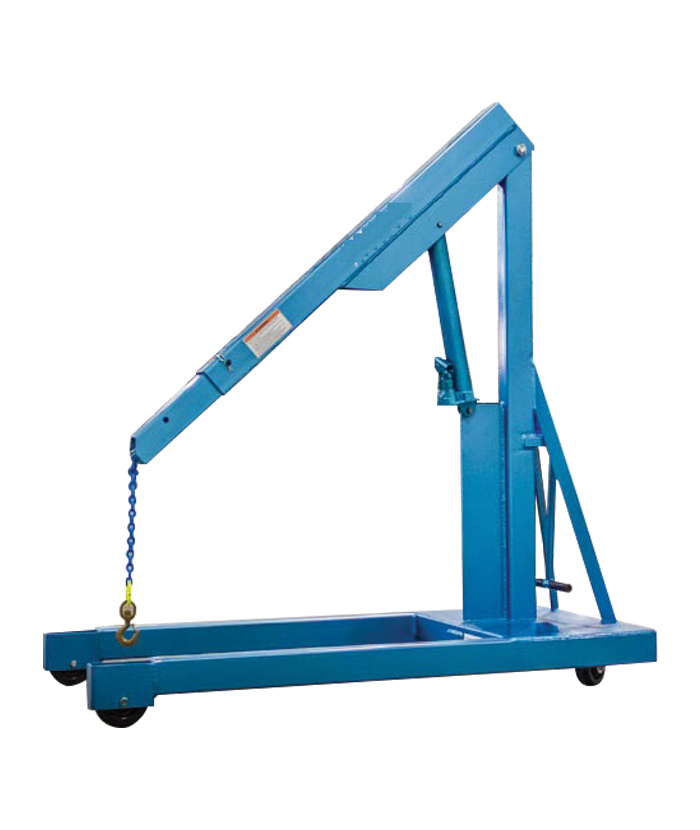

Floor Cranes-106
We offer unmatched range of Floor Cranes to our clients, which is available in different specifications and cater to the various requirements of our clients. These are well known for the unique features such as durability, easy installation and high performance. Furthermore, with the support of our team members, we meet the bulk demand of our clients within the committed time frame.We manufacture a wide range of floor cranes that are highly durable and rugged in construction. Customized as per the specifications of our clients, these are precision engineered and used for loading or unloading of material from trucks, maintenance work, dies loading on presses and various other applications.
Specifications
- Capacity : 500kgs to 3ton
- Lower height : 500mm/as per customer requirement
- Raised height : 3000mm/as per customer requirement
- Boom load position : inner : 1000kgs/as per customer requirement
- Middle : 450kgs/as per customer requirement
- Outer : 250kgs/as per customer requirement
- Standard boom length : 1200mm/as per customer requirement
- Extended boom length : 800mm/as per customer requirement
- Total boom length : 2000mm/as per customer requirement
- Fork length : 1500mm/as per customer requirement
- Fork width : 1300mm/as per customer requirement
- Overall length : 2200mm/as per customer requirement
- Overall width : 1400mm/as per customer requirement
- Crane close height : 2400mm/as per customer requirement
System
- Manual hydraulic operated
- Electric power pack operated
- Counter balance floor crane with manual/electric system
Hydraulic electric power pack unit (optional)
- M/s oil tank 25 ltrs. (w/o oil) – 1nos
- Gear pump – 1nos
- Pressure gauge – 1nos
- Pressure relief valve – 1nos
- Many fold block – 1nos
- Suction filters – 1nos
- A. C electric solenoid valve – 1nos
- Wheel : 4 nos 10" x 3" UHME heavy duty block wheels with double ball bearing.
- Crane hook : heavy duty special industrial cast iron material make hook
- Load pin : all load pin are made from m. S. Steel with process of hardening, grinding, zinc platging for long life use of equipment
- Jack : 2 nos manual screw jack (optional)
- Structure : heavy duty m. S. Fabricated structure
- Hydraulic : manual operated hydraulic cylinder
- Colour : golden yellow
- Weight : 300kgs to 400kgs/depend on load capacity
